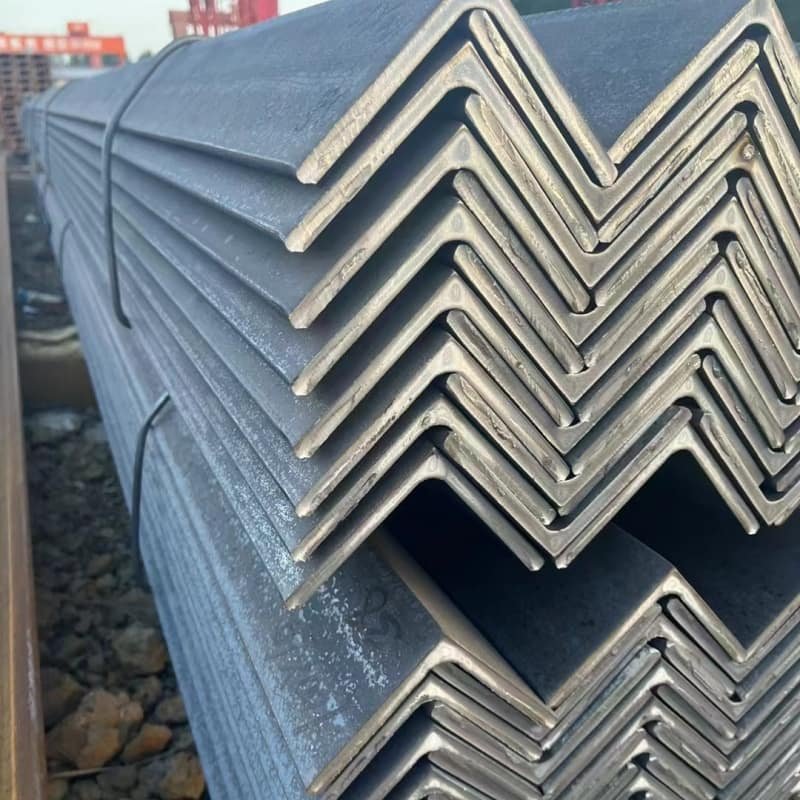

Hot Rolled Equal Angle Steel Bar
Premium Hot Rolled Equal Angle Steel designed for heavy-duty structural stability. Ruicheng Steel supplies precision-manufactured angle bars compliant with GB, ASTM, and JIS standards.
-
Material Grades: Q235B, Q345B, SS400, ASTM A36, S235JR.
-
Dimension Range: Width 20mm-200mm; Thickness 3mm-24mm.
-
Surface Options: Available in Black (Bare), Painted, or Hot-Dip Galvanized for long-term corrosion resistance.
-
Key Benefits: High tensile strength, consistent 90° shape, and excellent weldability.
-
Availability: Large ready stock for fast delivery;
products details
Our Hot Rolled Equal Angle Steel (also known as Angle Bar) is a staple material in the construction industry. Manufactured to meet strictly international standards including GB, JIS, and ASTM, our angle steel offers superior durability and weldability. It is widely used in building structures, transmission towers, and industrial framing.
Key Specifications
Product Name: Equal Angle Steel / Angle Iron / L-Bar
Material Grades: Q235, Q345, SS400, A36
Standards: GB/T 9787, JIS G3192, ASTM A36
Technique: Hot Rolled
Surface Treatment: Black, Galvanized (Hot-Dip), or Painted
Size Range: 20mm20mm to 200mm200mm
Thickness: 3mm to 20mm
Length: 6m, 9m, 12m, or customized cutting
Origin: China
Applications Thanks to its reliable mechanical properties, our structural angle steel is essential for:
Construction frameworks and bridges.
Electrical transmission towers.
Industrial machinery bases and equipment manufacturing.
Warehouse shelving and support beams.
| Size | Weigh（kg/m） | Size | Weigh（kg/m） | Size | Weigh（kg/m） |
|---|---|---|---|---|---|
| 25X25X3 | 1.124 | 75X75X5 | 5.818 | 125X125X12 | 22.696 |
| 25X25X4 | 1.459 | 75X75X6 | 6.905 | 125X125X14 | 26.193 |
| 30X30X3 | 1.373 | 75X75X7 | 7.976 | 130X130X9 | 17.9 |
| 30X30X4 | 1.786 | 75X75X8 | 9.03 | 130X130X15 | 23.4 |
| 40X40X3 | 1.852 | 75X75X10 | 11.089 | 130X130X15 | 28.8 |
| 40X40X4 | 2.422 | 80X80X6 | 7.376 | 140X140X10 | 21.488 |
| 40X40X5 | 2.976 | 80X80X7 | 8.525 | 140X140X12 | 25.522 |
| 45X45X3 | 2.088 | 80X80X8 | 9.658 | 150X150X12 | 27.3 |
| 45X45X4 | 2.736 | 80X80X10 | 11.874 | 150X150X15 | 33.6 |
| 45X45X5 | 3.369 | 90X90X6 | 8.35 | 160X160X12 | 29.391 |
| 50X50X3 | 2.332 | 90X90X7 | 9.656 | 160X160X14 | 33.987 |
| 50X50X4 | 3.059 | 90X90X8 | 10.946 | 160X160X16 | 38.518 |
| 50X50X5 | 3.77 | 90X90X10 | 13.476 | 180X180X12 | 33.159 |
| 50X50X6 | 4.465 | 100X100X6 | 9.366 | 180X180X14 | 38.383 |
| 63X63X5 | 4.822 | 100X100X7 | 10.83 | 180X180X16 | 43.542 |
| 63X63X6 | 5.721 | 100X100X8 | 12.276 | 180X180X18 | 48.634 |
| 63X63X8 | 7.469 | 100X100X10 | 15.12 | 200X200X14 | 42.894 |
| 70X70X5 | 5.397 | 100X100X12 | 17.898 | 200X200X16 | 48.68 |
| 70X70X6 | 6.406 | 110X110X10 | 16.69 | 200X200X18 | 54.401 |
| 70X70X7 | 7.398 | 125X125X8 | 15.504 | 200X200X20 | 60.056 |
| 70X70X8 | 8.373 | 125X125X10 | 19.133 | 200X200X24 | 71.168 |
